The Vapour-Compression Refrigeration Cycle

Vapour-compression refrigeration is the thermodynamic process behind almost every air conditioner, domestic refrigerator, heat pump, and industrial chiller in use today. A refrigerant circulates continuously through four components — evaporator → compressor → condenser → expansion valve — absorbing heat at low temperature and rejecting it at high temperature. The only energy input is the compressor work, and the efficiency of this heat-pumping process is measured by the coefficient of performance (COP).

The MechSimulator Refrigeration Cycle Calculator animates all four processes on a pressure–enthalpy (P-h) diagram and computes every key performance metric in real time. It supports four common refrigerants — R-134a, R-410A, R-22, and R-290 (propane) — and allows independent control of evaporator temperature, condenser temperature, superheat, subcooling, isentropic efficiency, and system capacity.

The Four Processes and Their Equations

Label the four state points around the cycle as 1 (evaporator outlet / compressor inlet), 2 (compressor outlet), 3 (condenser outlet), and 4 (expansion valve outlet / evaporator inlet).

Process 1→2: Isentropic Compression

The compressor raises the refrigerant from low-side pressure to high-side pressure. For an ideal (isentropic) compressor, entropy is constant. In practice, an isentropic efficiency η is applied:

where h_2s is the enthalpy at isentropic discharge and η_is is typically 0.70–0.85 for modern reciprocating or scroll compressors.

Process 2→3: Condensation

Hot, high-pressure vapour rejects heat to the environment (or a heat sink) in the condenser and exits as subcooled liquid. The heat rejected per unit mass is:

Process 3→4: Isenthalpic Expansion

The expansion valve (or capillary tube) drops the pressure from condenser level to evaporator level. Being adiabatic and throttling, enthalpy is conserved:

Part of the liquid flashes to vapour at the valve outlet. The vapour quality x₄ tells you what fraction of the refrigerant is vapour entering the evaporator — lower quality means more liquid and a larger refrigerating effect.

Process 4→1: Evaporation

The refrigerant absorbs heat from the cold space, evaporating fully and picking up a small amount of superheat before leaving the evaporator. The refrigerating effect per unit mass is:

Coefficient of Performance

COP is defined as useful output (cooling) divided by required input (compressor work):

Carnot COP Limit

The theoretical maximum COP for any refrigeration cycle operating between absolute temperatures T_L (evaporator) and T_H (condenser) is:

Real cycles achieve roughly 40–60% of the Carnot COP due to irreversibilities in the compressor, heat exchangers, and expansion process.

Worked Example: R-134a Standard Conditions

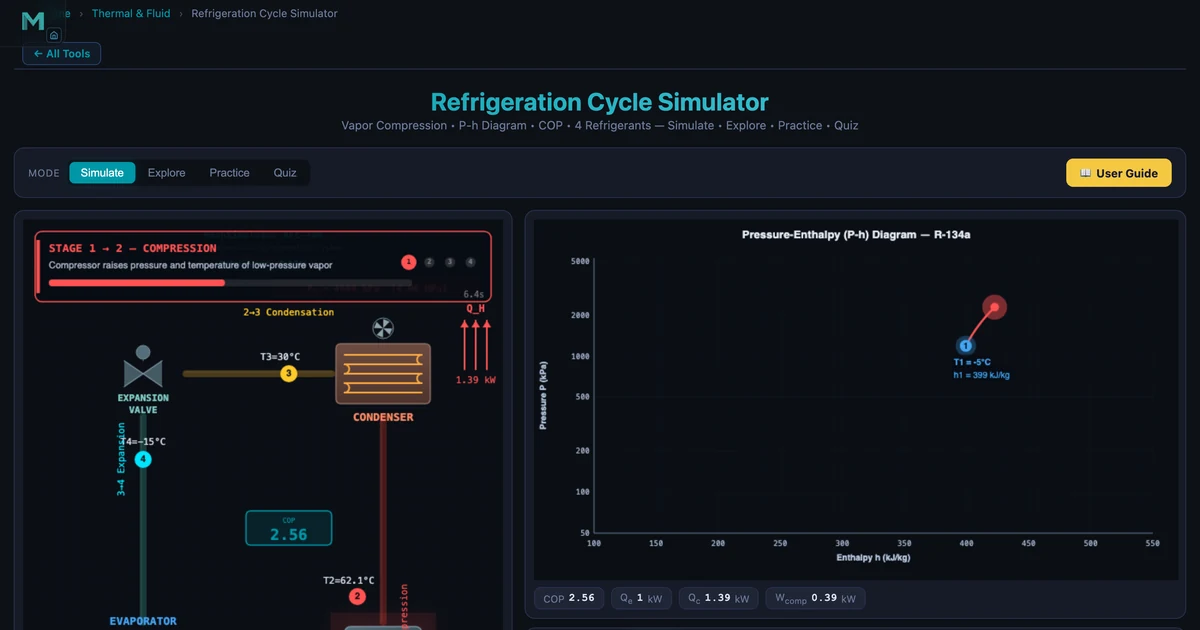

Set the simulator to R-134a with T_evap = −15 °C, T_cond = 35 °C, superheat = 10 K, subcooling = 5 K, η = 80 %, and system capacity Q = 1.0 kW. The calculator produces:

• COP = 2.56
• Compressor power = 0.39 kW
• Heat rejected (condenser) = 1.39 kW = Q_evap + W_comp
• Pressure ratio = 3.41
• Discharge temperature = 62.1 °C
• Flash quality at expansion valve x₄ = 30.9 %
• Mass flow rate = 6.5 g/s

An energy balance confirms: 1.39 kW ≈ 1.0 kW + 0.39 kW ✓. The Carnot COP for these temperature levels (T_L = 258 K, T_H = 308 K) is COP_Carnot = 258/(308 − 258) = 5.16. The real cycle achieves 2.56/5.16 = 50% of the Carnot limit — typical for a well-designed system.

Effect of Operating Conditions on COP

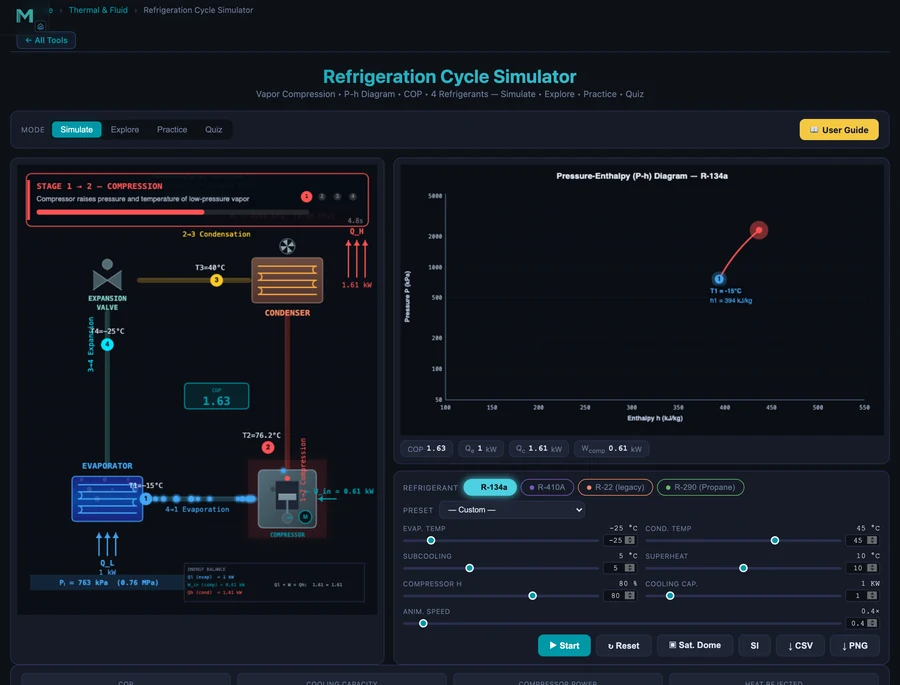

Change T_evap to −25 °C and T_cond to 45 °C (a freezer in a warm room). COP falls to 1.63 and the pressure ratio climbs to 5.32, with a discharge temperature of 76.2 °C. Compared to the standard case, the cooling load now costs 60% more compressor work per kilowatt of refrigeration — a significant operating cost increase.

This sensitivity has major design and operational implications:

• Evaporator temperature — every 1 K drop in T_evap reduces COP by roughly 3–5%. Keeping evaporator coils clean and well-defrosted is an energy-saving maintenance priority.
• Condenser temperature — every 1 K rise in T_cond also reduces COP. Adequate condenser airflow and ambient temperature management (shading outdoor units) are important in hot climates.
• Compressor efficiency — changing η from 80% to 70% in the simulator shows how poor compressor condition (worn rings, valve leakage) directly inflates operating cost.

Refrigerant Comparison: R-134a vs R-410A vs R-290

Switch the refrigerant tab while keeping all other conditions at the standard values (−15 °C / 35 °C, η = 80 %) to compare the four refrigerants:

• R-134a (HFC) — COP ≈ 2.56, PR ≈ 3.4. Low operating pressures, widely used in automotive and light commercial refrigeration. GWP = 1430; subject to F-gas phase-down regulations.
• R-410A (HFC blend) — Higher operating pressures (~2× R-134a), dominant in residential split air conditioners. GWP = 2088; being replaced by R-32 and R-454B under current regulations.
• R-22 (HCFC) — Legacy refrigerant, now banned for new equipment in most countries. Useful as a reference baseline to understand performance history.
• R-290 (Propane, HC) — GWP = 3, excellent thermodynamic properties, COP often slightly higher than HFCs at the same conditions. Flammable (A3 safety class) — limited to small charge systems per EN 378 / IEC 60335.

Superheat, Subcooling, and System Efficiency

Superheat at the evaporator outlet ensures no liquid reaches the compressor. A typical target is 5–10 K superheat at the compressor suction. Too little superheat risks liquid slugging damage; too much reduces the fraction of the evaporator used for heat transfer and lowers q_evap. The simulator shows how raising superheat beyond 10 K slightly reduces COP.

Subcooling at the condenser outlet increases h₃'s distance from the saturation line, reducing flash quality x₄ at the expansion valve. This increases q_evap = h₁ − h₄ without changing compressor work, so subcooling directly improves COP. A 5 K subcooler is standard on most systems; liquid-line / suction-line heat exchangers add further subcooling at the cost of slightly higher suction superheat.

Using the Refrigeration Cycle Calculator

Open the simulator and work through these scenarios:

1. Standard R-134a cycle — T_evap = −15 °C, T_cond = 35 °C, η = 80 %, Q = 1 kW. Note COP, power, and PR. Verify the energy balance: Q_cond = Q_evap + W_comp.
2. Increase condenser temperature to 45 °C (hot day simulation). Observe COP drop and discharge temperature rise. This models the performance penalty of inadequate condenser airflow.
3. Lower evaporator temperature to −30 °C (deep freeze). COP approaches 1 and PR exceeds 6 — approaching the limit of single-stage compression. In practice a two-stage system would be used.
4. Add subcooling — increase subcooling from 0 to 10 K. COP improves measurably. Compare to the same improvement from reducing superheat and see which is more effective.
5. Switch refrigerants at identical conditions. Compare COP, PR, and discharge temperature. Observe that R-290 often achieves slightly higher COP than HFCs.
6. Scale capacity — change Q from 1 kW to 10 kW. Power and mass flow scale proportionally; COP is unchanged. This demonstrates that COP is a property of the cycle conditions, not the system size.

Key Takeaways

• COP = Q_evap / W_comp. Every degree of improvement in evaporator or condenser temperature directly improves COP and reduces operating cost.
• Pressure ratio governs compressor stress. High PR means high discharge temperature and reduced compressor efficiency — multi-stage compression is preferred above PR ≈ 8.
• Subcooling is free efficiency. Adding subcooling increases refrigerating effect without increasing compressor work, improving COP at negligible capital cost.
• Real COP is typically 40–60% of Carnot. The gap is filled by compressor irreversibilities, heat exchanger temperature differences, and expansion valve losses.
• Refrigerant choice affects operating pressure and GWP. Modern low-GWP options like R-290 and R-32 offer good thermodynamic performance with reduced environmental impact.
