Cam Mechanisms in Engineering

A cam and follower converts continuous rotary motion into a precisely controlled reciprocating or oscillating output. Unlike a crank-slider mechanism — which is constrained to sinusoidal motion — a cam can be shaped to produce almost any desired displacement programme: dwell periods, rapid rise, gentle return, or complex multi-step sequences. This flexibility makes cams the mechanism of choice wherever precise timing and motion control matter.

Engine valves in automotive engines, needle bars in sewing machines, pill-dispensing cams in pharmaceutical packaging lines, and gripper actuators in printing presses all rely on carefully designed cam profiles. The MechSimulator Cam & Follower Calculator allows you to choose from four standard motion laws, set base circle radius, lift, speed, and dwell angles, and immediately see the resulting displacement, velocity, and acceleration diagrams — plus pressure angle analysis for the complete cam rotation.

The Four Standard Motion Laws

The motion law specifies how follower displacement s varies with cam rotation angle θ during the rise phase (from base circle to full lift h over rise angle β). The same law is typically applied in reverse for the return phase.

Simple Harmonic Motion (SHM)

The most widely used motion law, SHM produces a cosine displacement curve:

s(\theta) = \frac{h}{2}\left(1 - \cos\frac{\pi\theta}{\beta}\right)

Peak velocity (at mid-rise, θ = β/2):

v_{max} = \frac{\pi h \omega}{2\beta}

Peak acceleration (at start and end of rise):

a_{max} = \frac{\pi^2 h \omega^2}{2\beta^2}

Cycloidal Motion

The cycloidal law is derived from a point on a circle rolling along the rise angle. Its key advantage is that both displacement and its first two derivatives (velocity and acceleration) are continuous — there are no abrupt changes that generate shock loading:

s(\theta) = h\left(\frac{\theta}{\beta} - \frac{1}{2\pi}\sin\frac{2\pi\theta}{\beta}\right)

Peak velocity and acceleration for cycloidal motion:

v_{max} = \frac{2h\omega}{\beta}, \quad a_{max} = \frac{2\pi h \omega^2}{\beta^2}

Although v_max is higher than SHM, a_max is lower than parabolic motion, and the smooth acceleration profile makes cycloidal cams the preferred choice for high-speed automated machinery.

Uniform Acceleration (Parabolic)

The first half of the rise uses constant positive acceleration; the second half uses constant negative (deceleration) of equal magnitude. This produces the shortest rise time for a given maximum acceleration, but the abrupt change in acceleration at the midpoint generates a theoretical impulse that excites vibration:

a_{max} = \frac{4h\omega^2}{\beta^2}

Parabolic motion is used at low speeds or where compactness is critical, but is avoided in high-speed applications.

Uniform Velocity

Constant velocity during the rise — the displacement diagram is a straight line. Peak velocity is:

v = \frac{h\omega}{\beta}

In theory, uniform velocity requires infinite acceleration at the start and end of the stroke (velocity discontinuity), making it unsuitable for any dynamic application. It is sometimes used as a conceptual baseline or for very slow feeds in machine tools.

Pressure Angle: The Critical Design Constraint

The pressure angle α is the angle between the follower's direction of motion and the normal to the cam profile at the contact point. It determines how much of the cam's contact force actually drives the follower (cosine component) versus pushes it sideways against its guide (sine component):

\tan\alpha = \frac{ds/d\theta}{r_0 + s}

where r₀ is the base circle radius and s is the current follower displacement. A high pressure angle means a large side force, which increases friction, wears the follower guide, and can cause jamming. The industry guideline (AGMA) is to keep α_max below 30° for a translating roller follower.

The most effective way to reduce pressure angle is to increase r₀ — a larger base circle means the follower velocity (ds/dθ) is divided by a larger denominator. The trade-off is a larger, heavier cam. The simulator plots the pressure angle throughout the full cam rotation so you can identify the peak and adjust r₀ accordingly.

Worked Example: Engine Valve Cam (SHM Preset)

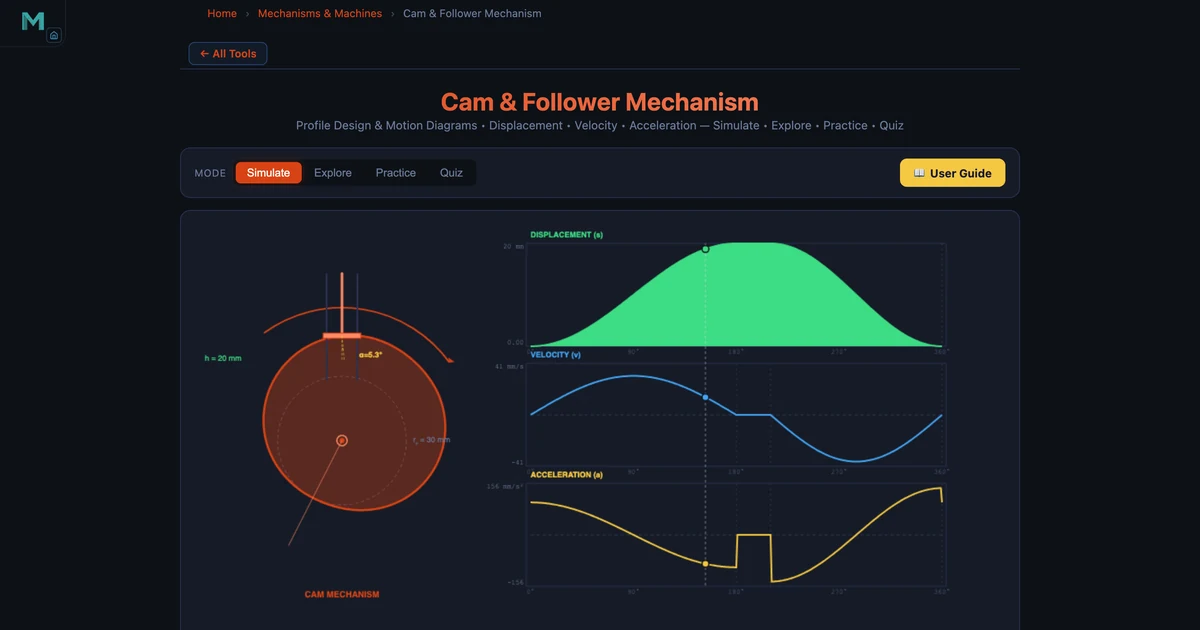

Load the Engine Valve preset in the simulator: SHM motion law, base radius r₀ = 25 mm, lift h = 10 mm, speed N = 60 rpm (ω = 2π rad/s), roller follower, rise angle β = 90° (π/2 rad).

Angular velocity: ω = 2π × 60/60 = 2π rad/s ≈ 6.28 rad/s. Rise angle in radians: β = π/2 ≈ 1.571 rad.

Peak follower velocity (at mid-rise):

v_{max} = \frac{\pi \times 10 \times 2\pi}{2 \times \frac{\pi}{2}} = \frac{10\pi \times 2\pi}{\pi} = 20\pi \approx 62.8 \text{ mm/s}

Peak follower acceleration (at start/end of rise):

a_{max} = \frac{\pi^2 \times 10 \times (2\pi)^2}{2 \times \left(\frac{\pi}{2}\right)^2} = \frac{10\pi^2 \times 4\pi^2}{2 \times \frac{\pi^2}{4}} = \frac{40\pi^4}{\frac{\pi^2}{2}} = 80\pi^2 \approx 789 \text{ mm/s}^2

The simulator plots these peaks on the velocity and acceleration diagrams. Observe that the SHM curve is smooth everywhere — no abrupt acceleration changes — making it well suited for engine valvetrain applications operating up to several thousand rpm.

Printing Press Cam: Cycloidal Motion at Higher Lift

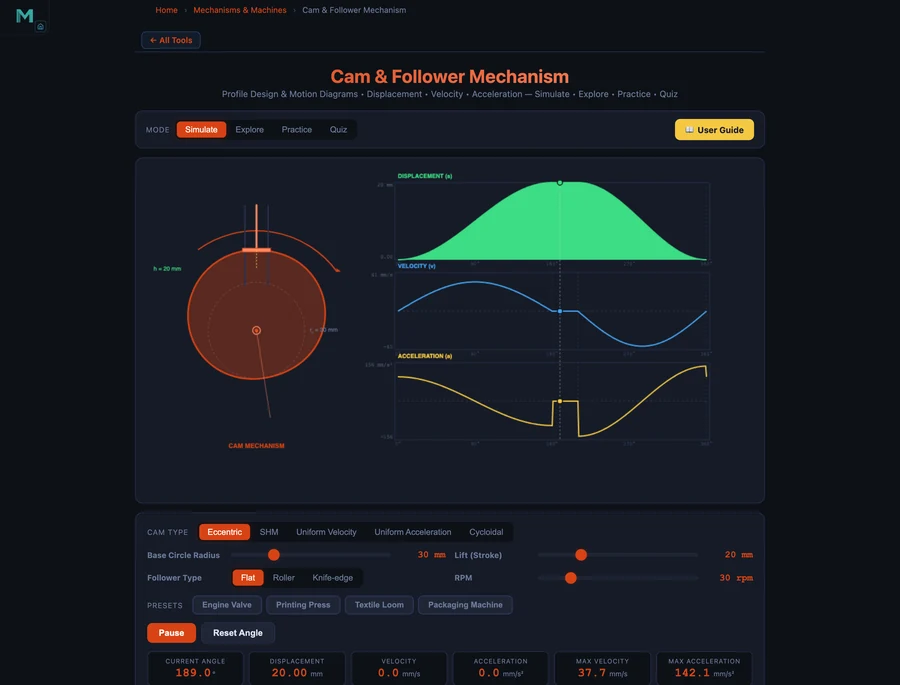

Switch to the Printing Press preset: Cycloidal motion law, r₀ = 40 mm, h = 25 mm, N = 45 rpm (ω = 3π/2 rad/s), flat follower, rise angle β = 120° (2π/3 rad).

Peak velocity: v_max = 2 × 25 × (3π/2) / (2π/3) = 75π/(2π/3) = 75π × 3/(2π) = 112.5 mm/s ≈ 113 mm/s.

Peak acceleration: a_max = 2π × 25 × (3π/2)² / (2π/3)² = 2π × 25 × 9π²/4 / (4π²/9) = 2π × 25 × (9π²/4) × (9/(4π²)) = 2π × 25 × 81/16 ≈ 796 mm/s².

Compared to a uniform-acceleration cam with the same parameters — which would give a_max = 4 × 25 × (3π/2)² / (2π/3)² = 2 × 796 ≈ 1592 mm/s² — the cycloidal law halves the peak acceleration. This directly halves the inertia force on the follower and the contact stress on the cam surface, significantly extending cam life in a high-production printing environment.

Follower Types and Their Characteristics

The simulator supports the two most common follower types, each with distinct design trade-offs:

Roller follower — A cylindrical roller rides against the cam surface, replacing sliding friction with rolling friction. Suitable for higher speeds and loads. The cam profile must have a radius of curvature everywhere greater than the roller radius to avoid undercutting (cusps in the profile that would cause the roller to dig in). The simulator warns if undercutting occurs.
Flat-face follower — A flat plate slides on the cam surface. It inherently avoids undercutting regardless of cam geometry and is compact. The contact point translates across the flat face as the cam rotates, generating sliding velocity and higher friction than a roller. Common in automotive overhead-cam engines with desmodromic valvetrains.

Using the Cam & Follower Simulator

Open the simulator and work through these design exercises:

Compare motion laws — Set r₀ = 30 mm, h = 20 mm, N = 60 rpm, β = 180°. Switch between SHM, Cycloidal, and Uniform-acceleration. Compare v_max and a_max values. Note that cycloidal produces the lowest a_max.
Pressure angle investigation — With SHM, r₀ = 20 mm, h = 30 mm. Observe high pressure angle. Double r₀ to 40 mm and watch pressure angle drop well below 30°. This illustrates the r₀ / h trade-off.
Speed sensitivity — Double the speed from 60 to 120 rpm. Velocity doubles (as expected since v ∝ ω) and acceleration quadruples (a ∝ ω²). This demonstrates why high-speed cams require particularly gentle motion laws.
Engine valve preset — Load the Engine Valve preset. Verify the smooth SHM curve and note the low peak acceleration for engine speed. Switch to flat follower and compare the pressure angle diagram.
Printing press vs textile loom — Compare the Printing Press (cycloidal, flat follower) and Textile Loom (uniform-acceleration, larger lift) presets. Note how the loom's higher lift and parabolic law produce much higher peak acceleration despite a lower speed.

Key Takeaways

Motion law choice determines dynamic forces. Cycloidal minimises peak acceleration for a given lift and speed; uniform-acceleration maximises it. Choose the motion law based on operating speed and acceptable inertia loads.
Acceleration scales with ω². Doubling camshaft speed quadruples inertia forces. High-speed design always demands the smoothest available motion law.
Keep pressure angle below 30°. Large pressure angles cause side forces that jam followers. Increase base circle radius r₀ to reduce pressure angle at the cost of a larger cam.
Roller followers prevent undercutting but roller radius must be checked. The cam pitch curve radius of curvature must exceed the roller radius everywhere.
Dwell periods are free. Unlike crank mechanisms, cam mechanisms can include arbitrary dwell intervals (zero follower velocity) between rise and return — essential for operations that require the follower to pause at a fixed position.

Explore Related Simulators

Cam mechanisms belong to the broader family of mechanisms that convert and transmit motion. The Four-Bar Linkage Simulator covers another fundamental mechanism class — comparing the two reveals when a cam offers design advantages (arbitrary motion programme, dwell capability) and when a four-bar linkage is preferable (simplicity, durability, lower manufacturing cost).

The dynamic forces generated by follower acceleration connect directly to vibration analysis. The Vibrations — Spring-Mass-Damper guide explains how follower mass, spring stiffness, and cam speed interact to create resonance conditions that designers must identify and avoid.
