What is the Reynolds number and what does it predict?

The Reynolds number is a dimensionless ratio of inertial forces to viscous forces in a flowing fluid: Re = ρvD/μ, where ρ is fluid density (kg/m³), v is flow velocity (m/s), D is the pipe diameter (m), and μ is dynamic viscosity (Pa·s). For flow inside a circular pipe, Re 4000 indicates turbulent flow (chaotic eddies and strong mixing). The number was proposed by Osborne Reynolds in 1883 and is fundamental to all pipe flow, heat exchanger, and aerodynamic design.

Why does honey always flow laminarly but water in a tap can be turbulent?

It comes down to viscosity. Honey has a dynamic viscosity of about 10 Pa·s at 20°C — roughly 10,000 times higher than water (0.001 Pa·s). With a high μ in the denominator, Re = ρvD/μ stays tiny even at moderate speeds. A honey stream 5 cm wide at 1 m/s gives Re = 1420 × 1.0 × 0.05 / 10 = 7.1 — deeply laminar. The same pipe with water at the same speed gives Re = 1000 × 1.0 × 0.05 / 0.001 = 50,000 — strongly turbulent. Viscosity controls whether a fluid stays in orderly layers or breaks into chaotic mixing.

What is the critical velocity for pipe flow and how do you calculate it?

The critical velocity is the flow speed at which Re = 2300 — the boundary between laminar and transitional flow. It is calculated as v_crit = 2300 × μ / (ρ × D). For water (μ = 0.001 Pa·s, ρ = 1000 kg/m³) in a 4 cm diameter pipe: v_crit = 2300 × 0.001 / (1000 × 0.04) = 0.0575 m/s. Any velocity above 5.75 cm/s puts flow into the transitional or turbulent regime. For a viscous oil (μ = 0.084 Pa·s, ρ = 920 kg/m³, D = 0.04 m): v_crit = 2300 × 0.084 / (920 × 0.04) ≈ 5.25 m/s — oil must flow much faster than water before going turbulent.

Fluid Mechanics · Pipe Flow

Reynolds Number Simulator: Laminar vs Turbulent Flow Regimes Explained

By Naseel Ibnu Azeez, Mechanical Engineering Instructor · June 7, 2026 · 7 min read

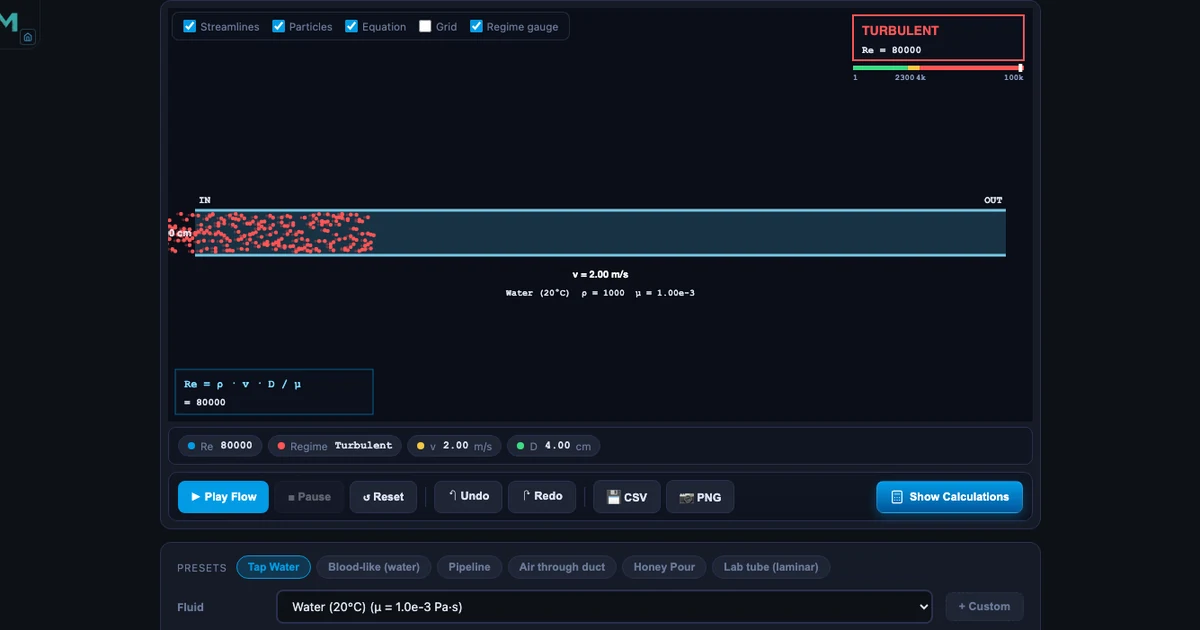

Reynolds Number simulator showing Tap Water preset — turbulent flow with chaotic red eddies and vortices visible on the pipe canvas, Re readout showing turbulent regime, fluid parameters displayed in the control panel — The Reynolds Number simulator with the Tap Water preset loaded (water, v = 2 m/s, D = 4 cm). Re = ρvD/μ = 1000 × 2.0 × 0.04 / 0.001 = 80 000 — well into the turbulent regime. The canvas shows chaotic particle trajectories and cross-stream mixing; the regime badge reads **Turbulent**.

Osborne Reynolds put the question in concrete physical terms in 1883: what is the ratio of the inertial force trying to mix the fluid to the viscous force trying to keep it in orderly layers? When that ratio is small, viscosity wins and flow stays laminar — smooth, predictable, mathematically tractable. When the ratio is large, inertia wins and flow goes turbulent — chaotic, energy-hungry, but dramatically better at mixing and heat transfer.

The number Reynolds calculated is now the single most used parameter in fluid mechanics education. The Reynolds Number simulator on MechSimulator makes the transition from laminar to turbulent flow visible in real time: as you raise velocity or diameter, the animated streamlines break into eddies right at the Re = 2300 boundary. Six preset fluids — water, air, mercury, vegetable oil, glycerin, honey — let students compare viscosities across 6 decades in a single session.

What the Reynolds Number Actually Measures

The Reynolds number is dimensionless and defined as:

\[Re = \frac{\rho \cdot v \cdot D}{\mu}\]

where ρ is the fluid density (kg/m³), v is the mean flow velocity (m/s), D is the characteristic length — pipe internal diameter for pipe flow (m) — and μ is the dynamic viscosity (Pa·s). The equivalent form using kinematic viscosity ν = μ/ρ is Re = vD/ν.

What makes it powerful is that two flows with the same Re — even if they differ in fluid, pipe size, and velocity — are dynamically similar. This is the foundation of scale-model testing: a small-scale model tested in a dense fluid can predict the flow behaviour of a full-size structure in a less dense fluid, provided Re matches.

The Three Flow Regimes

For flow inside a circular pipe, three regimes are defined:

Laminar (Re < 2300) — fluid moves in concentric cylindrical layers that slide past each other without mixing. The velocity profile is a perfect parabola, fastest at the centre, zero at the wall. Friction factor f = 64/Re (Hagen–Poiseuille). Pressure drop is proportional to velocity.
Transitional (2300 ≤ Re ≤ 4000) — laminar and turbulent structures intermittently appear and disappear. Flow is sensitive to pipe roughness, inlet conditions, and vibration. Not suitable for design calculations — avoid this regime in engineering systems.
Turbulent (Re > 4000) — chaotic velocity fluctuations in all directions. The velocity profile is flatter (more uniform) than laminar. Friction factor follows Blasius: f = 0.316 / Re^0.25 for smooth pipes (Re < 10⁵). Much higher energy loss, but vastly better heat and mass transfer.

\[\text{Laminar:}\quad f = \frac{64}{Re} \qquad \text{Turbulent (Blasius):}\quad f = \frac{0.316}{Re^{0.25}}\]

The simulator switches its canvas animation at Re = 2300: below that, coloured streamlines travel in straight parallel paths; above it, particles spiral and cross stream boundaries, forming the visible vortices of turbulence.

Six Fluids: Viscosity Across Six Decades

The preset fluid list was chosen to span the practical viscosity range that engineering students encounter:

Air at 20°C (ρ = 1.20 kg/m³, μ = 1.81 × 10⁻⁵ Pa·s) — low viscosity means turbulence occurs at low Re. Air through a 20 cm duct at 5 m/s: Re = 1.20 × 5.0 × 0.20 / 1.81 × 10⁻⁵ ≈ 66 300 — strongly turbulent.
Water at 20°C (ρ = 1000 kg/m³, μ = 0.001 Pa·s) — the reference fluid. Tap water at 2 m/s in a 4 cm pipe: Re = 80 000. A water supply pipe at 3 m/s in a 30 cm main: Re = 900 000 — turbulent at any realistic velocity.
Vegetable oil (ρ = 920 kg/m³, μ = 0.084 Pa·s) — 84× more viscous than water. Oil flowing at the same 2 m/s in a 4 cm pipe: Re = 920 × 2.0 × 0.04 / 0.084 ≈ 876 — laminar.
Glycerin (ρ = 1260 kg/m³, μ = 1.412 Pa·s) — 1412× more viscous than water. In the lab tube preset (v = 0.3 m/s, D = 1 cm): Re = 1260 × 0.3 × 0.01 / 1.412 ≈ 2.7 — extremely laminar.
Honey at 20°C (ρ = 1420 kg/m³, μ = 10.0 Pa·s) — 10 000× more viscous than water. Pouring at 1 m/s through a 5 cm opening: Re = 1420 × 1.0 × 0.05 / 10.0 = 7.1 — deeply laminar, the textbook example.

Loading the Honey Pour preset and then switching to Tap Water — with all other settings held — produces a dramatic visual shift from perfectly parallel streamlines to chaotic turbulent eddies. The only thing that changed was μ in the denominator. This single comparison teaches the physical role of viscosity more vividly than any definition.

Critical Velocity: The Design Boundary

Setting Re = 2300 and solving for velocity gives the critical velocity — the maximum speed that keeps flow laminar in a given pipe with a given fluid:

\[v_{crit} = \frac{2300 \cdot \mu}{\rho \cdot D}\]

Reynolds Number simulator showing Lab tube preset with glycerin — laminar flow with smooth green parallel streamlines, Re readout close to 3, regime badge showing Laminar, fluid properties panel showing high viscosity — Lab tube preset: glycerin at v = 0.3 m/s through a 1 cm tube. Re ≈ 2.7 — one of the most laminar flows in the preset list. The canvas shows flawlessly parallel streamlines with zero cross-stream mixing; the regime badge is green (**Laminar**). This is the same physical principle that makes glycerin useful for demonstrating laminar flow in classroom Reynolds experiments.

For water (μ = 0.001, ρ = 1000) in a 4 cm pipe: v_crit = 2300 × 0.001 / (1000 × 0.04) = 0.0575 m/s — barely 6 cm/s. At practically any real water supply velocity, flow is turbulent. For vegetable oil in the same pipe: v_crit = 2300 × 0.084 / (920 × 0.04) ≈ 5.25 m/s — oil must flow much faster before going turbulent.

This asymmetry explains why engineers specify laminar flow for viscous lubrication circuits (hydraulic oil in bearing feeds must stay laminar to maintain the oil film) and turbulent flow for water heating systems (turbulence is needed for good heat transfer at the pipe wall).

Friction Factor and Pressure Drop

The Darcy–Weisbach friction factor f links the Reynolds number to head loss in a pipe:

\[\Delta P = f \cdot \frac{L}{D} \cdot \frac{\rho v^2}{2}\]

For laminar flow, f = 64/Re: pressure drop is proportional to velocity and inversely proportional to Re. For turbulent flow (Blasius, smooth pipe, Re < 10⁵), f = 0.316/Re^0.25: f decreases much more slowly with Re, so pressure drop scales roughly as v^1.75 rather than v¹. The steeper scaling means turbulent flow is far more energy-intensive at high velocities — doubling flow speed in the turbulent regime increases pumping power by a factor close to 2^2.75 ≈ 6.7, not 2² = 4.

Students who have worked with the Fluid Flow simulator will immediately recognise the Darcy–Weisbach equation; the Reynolds number simulator adds the regime-specific friction factor that determines which form applies.

Teaching with Six Presets in One Lesson

The six presets are ordered from familiar to exotic, and a single 45-minute lesson can work through all of them:

1. Tap Water (Re = 80 000, turbulent) — start here. Students are surprised that ordinary tap water in a household pipe is highly turbulent. Confirm Re with the formula.

2. Blood-like (water, v = 0.5 m/s, D = 2 cm, Re = 10 000) — aortic blood flow is also turbulent at peak systole. Discuss why the heart is a pulsatile pump rather than a steady pump.

3. Pipeline (water, v = 3 m/s, D = 30 cm, Re = 900 000) — large diameter dramatically increases Re. This is why municipal pipelines are always designed in the turbulent regime for good self-cleaning action.

4. Air through duct (Re ≈ 66 000) — air has much lower density than water but also much lower viscosity. The two effects partially cancel and air flows turbulently at engineering duct speeds.

5. Honey Pour (Re = 7.1, laminar) — switch from Air to Honey and watch the canvas transform. The high viscosity overwhelms the density and velocity terms completely.

6. Lab tube — glycerin (Re ≈ 2.7, laminar) — laboratory Reynolds-experiment conditions. This is how Reynolds demonstrated the transition in 1883: a slow-moving, highly viscous fluid in a narrow tube, with coloured dye injected to visualise the streamlines.

Explore Related Simulators

Reynolds number is the gateway concept for the entire fluid mechanics curriculum. The Fluid Flow simulator applies the results directly: pipe head loss, the Darcy–Weisbach equation, and major/minor losses all depend on whether flow is laminar or turbulent. The Bernoulli’s Principle simulator covers ideal inviscid flow — the case where viscosity (and hence Re) is irrelevant — making it a natural conceptual partner. For heat transfer applications, the Heat Transfer simulator covers convection coefficients that are fundamentally different in laminar (Nu = 3.66 for constant-wall-temperature pipe) versus turbulent (Dittus–Böelter correlation) regimes.

The Reynolds Number simulator is free, runs in any browser, and requires no account. Open it at mechsimulator.com/tools/reynolds-number/ and load the Honey Pour preset, then switch to Tap Water — the same diameter, the same velocity, but a 10 000-fold change in viscosity produces one of the most dramatic flow transitions you can visualise in a browser.
