Specific Heat Capacity Simulator

The Specific Heat Capacity Simulator lets you visually compare how different materials respond to the same heat energy input, using the fundamental equation Q = mcΔT. Two containers are heated side by side with animated flames, and the temperature rise of each material is tracked in real time through thermometers, temperature graphs, and numerical readouts. Materials with low specific heat capacity (like copper at 385 J/kg·K) heat up quickly, while those with high capacity (like water at 4186 J/kg·K) absorb much more energy before their temperature rises noticeably.

This simulator is designed for engineering and physics students learning about heat energy, calorimetry, and thermal properties of materials. It supports six materials (Water, Aluminium, Copper, Iron, Oil, and Glass) and provides hands-on comparison that makes the abstract concept of specific heat tangible and intuitive. Four modes cover simulation, concept exploration, practice problems, and quizzes.

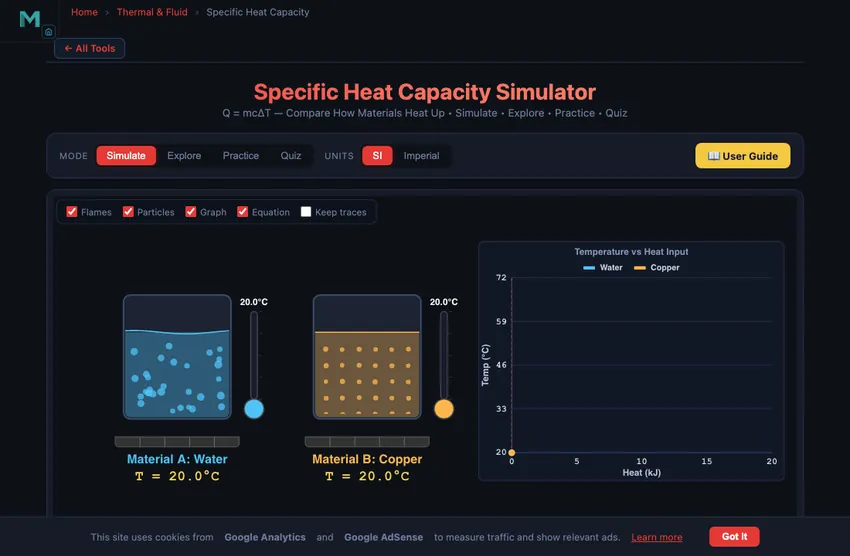

The simulator opens in Simulate mode with Material A set to Water (4186 J/kg·K) and Material B set to Copper (385 J/kg·K). The default heat input is 10.0 kJ with a mass of 1.0 kg for both materials. The canvas shows two containers with animated flames, thermometers, and temperature indicators. Below, the readout cards display the temperature of each material, the temperature change ΔT for each, the total heat added, and the governing formula ΔT = Q/(mc).

To start exploring, adjust the Heat Input (Q) slider from 0 to 50 kJ and watch how the two materials respond differently. Increase the heat and notice that Copper's temperature rises much faster than Water's — at 10 kJ with 1 kg, Copper reaches about 46 °C above ambient while Water only rises about 2.4 °C. You can also change the Mass (m) slider to see how doubling the mass halves the temperature change for the same heat input.

The canvas renders two containers with animated flames whose intensity reflects the heat input level. Thermometers on each container show the current temperature, with the liquid column rising as heat is added. The temperature graph plots both materials' temperatures against heat input, clearly showing the different slopes — steeper for low specific heat materials, shallower for high specific heat materials.

Use the Material A and Material B dropdowns to select any pair from the six available materials. Try comparing Water (c = 4186) with Iron (c = 449) to see nearly a 10-fold difference in temperature rise. Then compare Aluminium (c = 897) with Copper (c = 385) for a more subtle distinction. The readout cards update instantly: Material A Temp, Material B Temp, ΔT (A), ΔT (B), Heat Added, and the formula. This side-by-side comparison builds deep intuition about why material selection matters in thermal design.

Switch to Explore mode to browse concept cards across four categories: Heat & Energy, Specific Heat, Thermal Properties, and Applications. Heat & Energy covers the distinction between heat and temperature, the joule as a unit of energy, and how heat energy transfers between objects at different temperatures.

The Specific Heat category explains the Q = mcΔT formula and its rearrangements, why water has an exceptionally high specific heat (hydrogen bonding), and how calorimetry experiments measure unknown specific heats by mixing materials at different temperatures. Thermal Properties covers thermal conductivity versus specific heat, thermal diffusivity, and how these properties combine in transient heating. Applications includes engine cooling systems, thermal energy storage, food processing, electronics heat sinks, and building thermal mass. Each card has formulas, material comparison tables, and worked examples.

Practice mode generates randomised problems using Q = mcΔT. You might be asked to find the heat energy needed to raise 2 kg of aluminium by 50 °C, determine the specific heat of an unknown material from experimental data, calculate the final temperature when two materials at different temperatures are mixed, or find the mass of water that absorbs a given amount of energy. Enter your answer and click Check, or use Show Solution for a full step-by-step walkthrough.

Quiz mode presents five questions per session mixing conceptual and numerical problems. Topics include ranking materials by how fast they heat up, identifying which material requires the most energy for a given temperature change, solving Q = mcΔT for any unknown variable, and understanding why water is used as a coolant. After completing the quiz, review your performance and revisit weak areas in Explore mode.

Units (SI / Imperial): Toggle the top-right pill to switch every readout, slider label, canvas axis, and calculation-modal line between SI (kJ, kg, °C, J/(kg·K)) and Imperial (BTU, lb, °F, BTU/(lb·°F)). Calculations stay SI-internal, so accuracy is preserved across conversions.

Presets: Six one-click scenarios above the material selectors: Default, Metals Race, Oil vs Water, Coolant Comparison, Cookware, and Climate Mass. Each sets materials, mass, and heat input for a ready-made lesson.

Custom material: Click + Custom next to the material dropdowns to add your own material with a user-defined specific heat. Validated against a realistic 50–20 000 J/(kg·K) range.

Stepper inputs: The −/+ buttons beside each slider let you nudge heat and mass by exact steps; typing a precise value is also allowed.

Action bar: Press 🔥 Simulate to play a 6-second time-based heating animation — flames burn under both containers, particles speed up as their material warms, thermometers rise, and the temperature–vs–heat graph draws progressively so you can see which material heats faster in real time. Stop pauses, Reset clears results, Undo / Redo step through your last changes (Ctrl+Z / Ctrl+Shift+Z).

Canvas toggles: Top-left overlay checkboxes let you hide/show Flames, Particles, Graph, Equation, and Grid on the canvas — useful for focused screenshots or reducing visual load.

Show Calculations (🔢 FAB): The calculator button at the top-right of the canvas opens a step-by-step derivation modal showing every substitution and arithmetic step for both materials — the exact work a student would show on paper.

Learning panels: Below the readouts, three collapsible cards (Equations & derivation, Compare materials, Coach tips) provide always-visible reference material that updates with your current inputs.

Export: CSV saves the current temperature-vs-heat dataset; PNG saves a labelled snapshot of the canvas. Access the same actions plus Copy Material A / B via right-click on the canvas.

• The equation Q = mcΔT assumes no phase change. If the material reaches its melting or boiling point, additional latent heat must be considered separately.
• Remember that ΔT in Celsius equals ΔT in Kelvin — you do not need to convert temperature differences between the two scales.
• Water's specific heat (4186 J/kg·K) is roughly 10 times that of most metals. This is why water is the preferred coolant in engines, data centres, and industrial processes.
• In calorimetry problems, heat lost by the hot object equals heat gained by the cold object: m₁c₁ΔT₁ = m₂c₂ΔT₂. This conservation principle is the basis for measuring unknown specific heats.
• Use the mass slider to verify that doubling the mass at the same heat input halves the temperature rise. This linear relationship is a key feature of the Q = mcΔT equation.
• Pair this simulator with the Heat Transfer Simulator and the Thermal Expansion Calculator to see how thermal properties affect both energy transfer rates and dimensional changes.
