How to Read a Stress-Strain Curve — and Why the UTM Test Teaches It Better Than a Whiteboard

Picture this: it's week two of a Materials module and you've drawn the stress-strain curve on the whiteboard three times. You've labelled the elastic region, pointed to the yield point, explained what UTS means. The class nods. Then the quiz comes back and half the students have labelled the yield point as UTS and vice versa, with a few creative interpretations scattered in between. It's not that they weren't listening. It's that a static diagram on a whiteboard doesn't show what the material is actually doing as load increases.

That's the gap the UTM Virtual Lab was built to close.

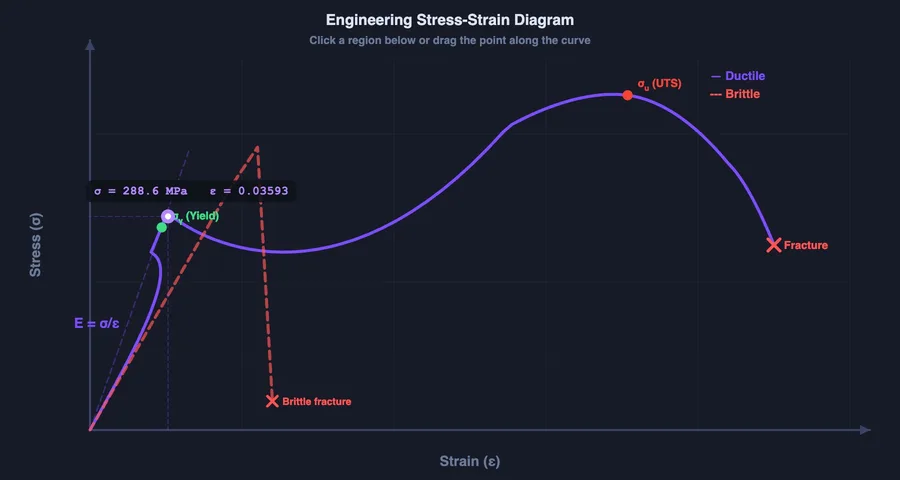

What the Stress-Strain Curve Is Actually Telling You

The stress-strain curve is a material's biography under load. Every point on it corresponds to a real physical state inside the material — and once students understand that, the regions stop being arbitrary labels to memorise and start being logical observations.

Start at zero. As load increases, the material stretches proportionally — stress and strain rise together in a straight line. This is the elastic region, governed by Hooke's Law: σ = Eε. The slope of this line is Young's modulus. For mild steel it's around 200 GPa, for aluminium around 69 GPa. The steeper the slope, the stiffer the material. If you remove the load at any point in this region, the material springs back to its original length. Nothing permanent has happened.

Then something gives.

At the yield point, the linear relationship breaks down. For mild steel, you'll often see a distinct upper yield point followed by a drop to a lower yield point — this is caused by the sudden release of dislocations in the crystal lattice. Other metals like aluminium have a more gradual yield, which is why the 0.2% proof stress is used for those materials instead. Either way, beyond yield, the material is deforming permanently. You take the load off and there's a new, longer rest length. That's plastic deformation — it doesn't come back.

Strain hardening follows. The material stretches further and the curve climbs again, but more gradually. The crystal structure is being rearranged at a microscopic level, making the material harder to deform further. The peak of this region is the ultimate tensile strength (UTS) — the maximum stress the material can sustain.

After UTS comes necking. The specimen starts to thin at one cross-section, and even though the total load drops, the local stress at that neck continues to rise until the material fractures. The drop in the engineering stress-strain curve after UTS is an artefact of using original area (A₀) in the calculation — the true stress is still rising right up to fracture.

Five Materials, Five Very Different Curves

This is where the simulator earns its place. In a physical lab, you might test two or three materials in an entire semester — one at a time, one specimen each, hoping nobody drops the extensometer. In the virtual lab, you can switch between mild steel, aluminium, copper, cast iron, and engineering rubber in seconds and watch the curves update instantly.

The contrast is instructive. Cast iron has almost no plastic region — it fractures before it yields noticeably, making it a brittle material. Mild steel has a pronounced yield drop and a long plastic region — it's ductile. Rubber has a wildly different curve with enormous elongation at comparatively low stress. These aren't just different numbers on the same shape of graph; they're fundamentally different behaviour patterns, and seeing them side-by-side makes the concept of ductility vs brittleness click in a way that words alone can't manage.

Ask students to predict which material will have the steepest elastic slope, the highest UTS, the longest plastic region. Then run the test and see if they were right. That moment of being correct — or wrong and finding out why — is worth three whiteboard sessions.

How to Run a Virtual Tensile Test Step-by-Step

1. Open the UTM Virtual Lab — navigate to the Simulate mode. You'll see a specimen gripped in the machine jaws with the load cell at the top and the crosshead ready to move.
2. Select your material — choose from the dropdown. The specimen geometry updates to match realistic proportions for that material type.
3. Start the test — click the Load button and watch the crosshead move. The stress-strain curve plots in real time on the right-hand panel. Watch the specimen elongate in the animation.
4. Observe the yield point — the curve will level off or drop depending on the material. Some students miss it the first time because they're watching the animation; run it again and watch the graph instead.
5. Identify UTS and fracture — the curve peaks at UTS, then drops to fracture. In the animation, you'll see necking occur at the weakest cross-section.
6. Read off the values — yield stress, UTS, elongation at fracture, and reduction in area are all displayed in the results panel. Compare them across materials.

In Practice mode, students are given a random material and asked to identify specific points on the curve or calculate Young's modulus from the slope. It's a solid pre-lab exercise that takes 15 minutes and means they arrive at the physical UTM already knowing what they're looking for.

The Numbers You Need to Know

There are four measurements you extract from a standard tensile test. Knowing what each one means — not just how to calculate it — is what separates a student who understands materials from one who's just memorised a formula.

Young's modulus (E) — slope of the elastic region. E = σ/ε. It tells you how stiff the material is. High E means the material resists deformation under load. Mild steel: ~200 GPa. Aluminium: ~69 GPa.

Yield stress (σ_y) — the stress at which permanent deformation begins. This is your primary design limit. If your component will ever exceed σ_y in service, it will be permanently deformed. For mild steel, σ_y is typically 250–350 MPa.

Ultimate tensile strength (UTS) — the maximum stress on the engineering stress-strain curve. It's the upper bound of what the material can carry before necking begins. Always higher than yield stress; the ratio UTS/σ_y is sometimes called the strain-hardening ratio.

Ductility — measured as percentage elongation (%EL = ΔL/L₀ × 100) or percentage reduction in area (%RA). Both tell you how much plastic deformation the material can absorb before fracture. High ductility means the material gives warning before failure; low ductility means sudden brittle fracture. Mild steel might show 20–30% elongation; cast iron barely 1%.

Using the Simulator in Teaching and Assessment

For instructors running hybrid or fully online sessions, the UTM Virtual Lab handles the visual and interactive component that static slides can't provide. Here's a three-stage approach that works well:

Stage 1 — Pre-lecture warm-up. Before teaching the theory, send students to Free mode for 10 minutes to just explore. Pull the specimen to failure, see what happens, look at the curve. No instruction. Just curiosity. When you then explain the regions in class, they'll already have a mental image to attach the theory to.

Stage 2 — In-class worked example. Run a live test during the lecture. Pause at the yield point and ask: "What would happen if this were a structural beam at this load level?" Let students discuss. Then continue to UTS. Then fracture. The narrative of the test matches the narrative of the theory.

Stage 3 — Quiz mode for revision. Quiz mode gives a randomised curve and asks students to identify key points, calculate E, or compare materials. It generates a new problem each time, so it works as a self-revision tool students can run at home without supervision.

For a deeper dive into how these three modes work across all the simulators, the article on using measuring instrument simulators in the classroom covers the Free → Practice → Quiz progression in detail.
