Torque and Rotation Simulator — Teaching Rotational Physics from Wrenches to Rolling Spheres

Ask any student who has struggled with rotational physics and they will tell you the same thing: the formulas are fine, the diagrams are fine, but they never know which axis to take moments about, or why the angle in τ = Fr sinθ is the angle between the force and the lever arm rather than the angle between the force and the vertical. These are not conceptual failures — they are spatial reasoning gaps that a static textbook diagram cannot close. The Torque & Rotation Simulator gives students a live animated environment to build that spatial intuition, one concept at a time.

Torque Is Not Just Force — The Three Factors Students Must Feel

Here is a classroom scene that happens more often than it should. A student calculates the torque on a bolt correctly using τ = Fr sinθ, gets the right number, and then cannot explain why moving their grip closer to the bolt head makes it harder to tighten. They did the algebra. They did not understand the physics.

Torque depends on three things: the magnitude of the force applied, the distance from the pivot point (the moment arm length), and the angle between the force direction and the lever arm. The formula captures all three:

\[\tau = F \times r \times \sin\theta\]

Maximum torque occurs at θ = 90° (force perpendicular to the lever arm). At θ = 0° or 180°, sinθ = 0 and no torque is produced at all, regardless of how large the force is — because a force along the lever arm passes through the pivot and causes only compression, not rotation.

For a 120 N force applied at 0.30 m from a bolt at θ = 90°:

\[\tau = 120 \times 0.30 \times \sin(90°) = 120 \times 0.30 \times 1.0 = 36.0 \text{ N·m}\]

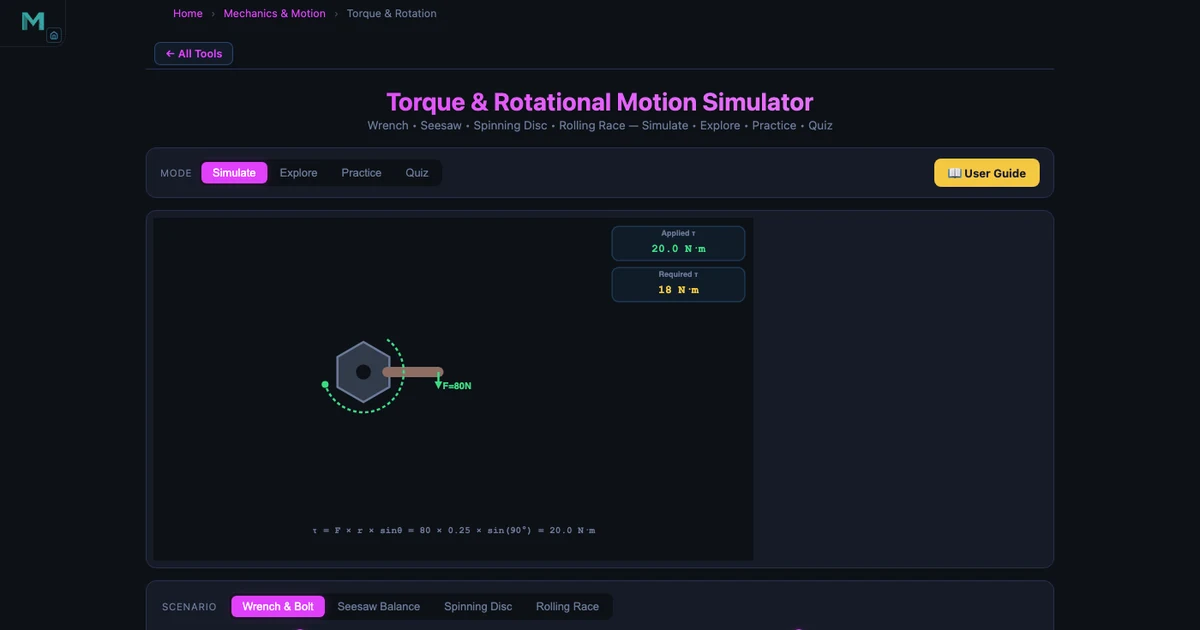

The Torque & Rotation Simulator shows the animated wrench diagram alongside this calculation. Students can drag the force angle from 0° to 180° and watch the torque value change while the effective moment arm shortens. That animation makes sinθ intuitive in a way that a single static diagram does not.

Rotational Equilibrium — The Seesaw Principle in Engineering

Rotational equilibrium is the condition where the net torque about any point is zero:

\[\sum \tau = 0 \quad \Longrightarrow \quad \tau_{\text{clockwise}} = \tau_{\text{counter-clockwise}}\]

For a seesaw where both children experience the same gravitational acceleration g, the condition simplifies to:

\[m_1 \times d_1 = m_2 \times d_2\]

If a 30 kg child sits 2.0 m from the fulcrum, a 20 kg child must sit at:

\[d_2 = \dfrac{m_1 \times d_1}{m_2} = \dfrac{30 \times 2.0}{20} = 3.0 \text{ m}\]

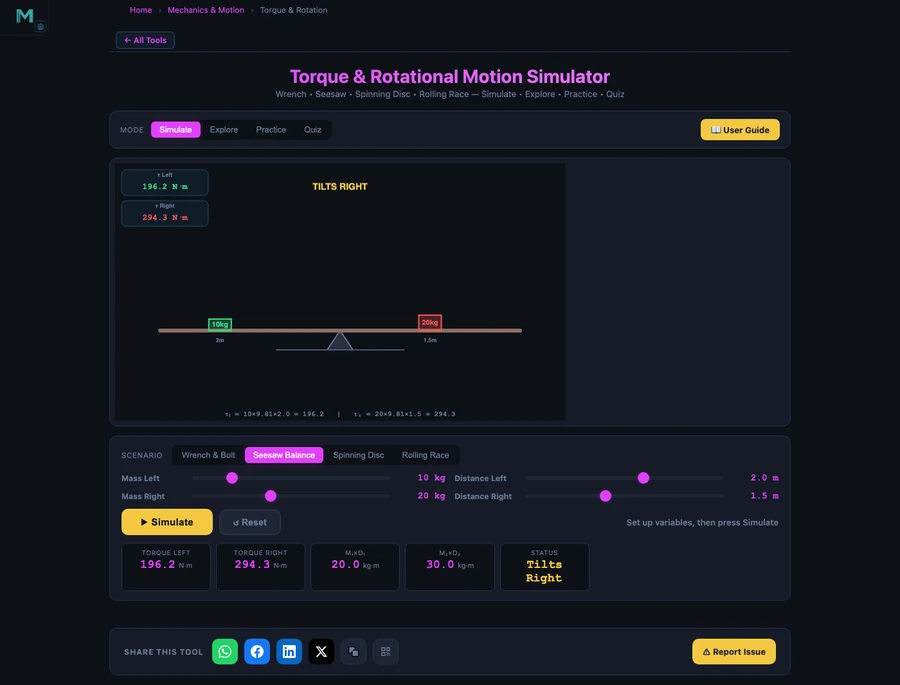

This is not just a playground problem. The same principle determines beam reaction forces in structural analysis, bolt-group centroids in joint design, and the balance of forces on any lever-based machine. The Seesaw/Lever concept card shows the mass positions and torque arrows simultaneously, so students can drag either child and watch the system tilt or balance in real time.

A particularly useful classroom task: give students the seesaw in an unbalanced state and ask “which way does it tilt, and by how much?” For a 15 kg child at 2.5 m left and a 25 kg child at 1.2 m right:

\[\tau_{\text{left}} = 15 \times 9.81 \times 2.5 = 367.9 \text{ N·m} \qquad \tau_{\text{right}} = 25 \times 9.81 \times 1.2 = 294.3 \text{ N·m}\]

The left side has the larger torque and tilts down. Students verify it in the simulator. Prediction then verification — the equilibrium calculation lands as a felt result, not just a number.

Newton’s Second Law for Rotation — From Torque to Spin

Translational Newton’s second law F = ma has a direct rotational analogue:

\[\tau = I \cdot \alpha\]

where \(I\) is the moment of inertia (kg·m²) and \(\alpha\) is the angular acceleration (rad/s²). Rearranging, \(\alpha = \tau/I\). A disc with I = 0.5 kg·m² under a torque of τ = 15 N·m accelerates at:

\[\alpha = \dfrac{15}{0.5} = 30 \text{ rad/s}^2\]

The moment of inertia depends on shape. For common bodies rotating about their central axis:

\[I_{\text{disc}} = \tfrac{1}{2}mr^2 \qquad I_{\text{ring}} = mr^2 \qquad I_{\text{sphere}} = \tfrac{2}{5}mr^2\]

For a solid disc of m = 4 kg and r = 0.30 m: I = 0.5 × 4 × 0.09 = 0.18 kg·m². A thin ring of identical mass and radius has I = 4 × 0.09 = 0.36 kg·m² — exactly double, because all the ring’s mass sits at maximum radius. The simulator concept card for Moment of Inertia lets students compare these values side by side, making the shape-dependence concrete rather than abstract.

Rolling Motion — Shape Determines the Race

One of the most elegant results in rotational physics is the rolling race: if you release a solid sphere, a solid cylinder, and a hollow cylinder from the same height on an incline, the sphere always wins. Not because of mass or size, but because of shape alone. The acceleration for rolling without slipping is:

\[a = \dfrac{g \sin\theta}{1 + I/(mr^2)}\]

The ratio I/mr² is shape-dependent and dimensionless: solid sphere = 0.4, solid cylinder = 0.5, hollow cylinder = 1.0. On a 30° slope (g = 9.81 m/s²):

\[a_{\text{sphere}} = \dfrac{9.81 \times \sin30°}{1 + 0.4} = \dfrac{4.905}{1.4} = 3.50 \text{ m/s}^2\]

\[a_{\text{cylinder}} = \dfrac{9.81 \times 0.5}{1.5} = 3.27 \text{ m/s}^2 \qquad a_{\text{hollow}} = \dfrac{9.81 \times 0.5}{2.0} = 2.45 \text{ m/s}^2\]

Mass and radius cancel completely — a bowling ball and a marble with the same shape roll at the same speed from the same height. Students find this genuinely surprising. The Rolling Motion concept card shows the incline and the three objects side by side, and the built-in problem generator produces fresh numerical examples for each session.

Using the Torque & Rotation Simulator in a Physics Lesson

Warm-up (5 min). Open the Wrench/Bolt Torque concept. Ask: “An M16 bolt needs 90 N·m. You have a 0.40 m wrench and can push with 200 N. Can you tighten it?” Students calculate τ = 200 × 0.40 × 1.0 = 80 N·m. Not enough. This immediately raises the question: “What would you do?” (Use a longer wrench, or push harder.) The engineering context gives torque a purpose students care about.

Equilibrium session (15 min). Open the Seesaw/Lever card. Set the unbalanced example above and ask students to find where the 25 kg child should sit to balance. They calculate, drag the position, and verify. Then extend to a three-force lever problem using Στ = 0 from a chosen pivot point.

Rotational dynamics (15 min). Open Angular Acceleration. Give disc I = 0.5 kg·m² under τ = 15 N·m → α = 30 rad/s². Ask: “What torque is needed to produce the same α in a ring of the same mass and radius?” Since I_ring = 2 × I_disc, τ must double to 30 N·m. Students see why shape matters before you define moment of inertia formally.

Built-in problem generator (10 min). The simulator includes a randomised problem generator across all 12 concepts. Students work through 3–4 problems independently as in-class practice and check against the stepped solutions. This replaces a printed worksheet and gives each student a different numerical problem, which deters copying and forces genuine engagement.

For the structural analysis extension — how moments in a beam lead to bending stress — the Shear Force and Bending Moment Diagram guide shows how equilibrium of moments scales from a seesaw to a loaded beam.
