1 Overview
This dial caliper simulator is a free online tool for practising the one skill a dial caliper actually demands: adding a beam reading to a dial reading without losing a revolution. Three real instruments are built in — 0.001″ (0.100″ per revolution), 0.02 mm (2 mm per revolution) and 0.01 mm (1 mm per revolution) — and all three share one 0–6″ / 0–150 mm body, exactly as a real 505-series caliper does. Four modes — Simulate, Explore, Practice and Quiz — take you from the mechanism to a scored reading test.
No sign-up, no download, no plugin. It runs in the browser on a phone, a tablet or a workshop PC.
2 Controls
- Drag the sliding jaw left or right to set any opening, or use the left/right arrow keys to step one dial division at a time.
- Instrument pills choose the graduation: 0.001″, 0.02 mm or 0.01 mm. This is one choice, not three settings — changing it re-cuts the beam as well, because on a real caliper the beam graduation and the travel per revolution are the same distance.
- Zero Error puts a bezel misalignment into the instrument, in whole dial divisions, up to ±5. Zero the bezel removes it the way you would on the bench.

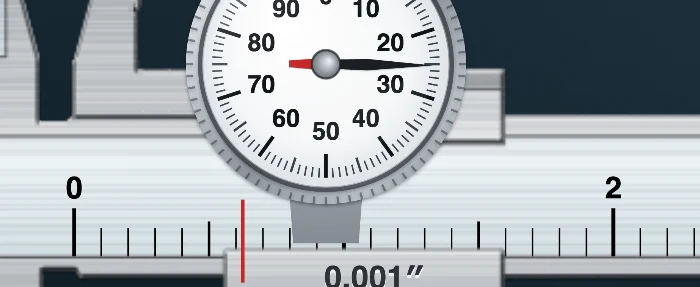

- Zoom frames the needle tip and the beam index together — never one without the other, because the reading needs both. It follows the needle round the dial, so the tip you are reading is always in view.
3 Taking a Reading
In Simulate mode the caliper responds freely. Drag the jaw and watch the needle sweep: every full turn advances the index line by exactly one beam graduation. That relationship is the instrument, and seeing it move is the fastest way to stop dropping revolutions.

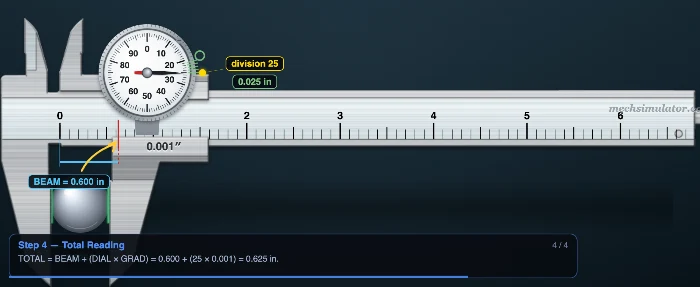

The panel underneath breaks the reading into BEAM, DIAL and GRAD, then shows the sum. Read the beam first, then the needle — the panel is deliberately laid out in that order.
3b Measuring a Real Object
The Measure an object button drops a real workpiece into the jaws — bar, cylinder standing or lying, ball bearing, cube, M12 nut, Ø10 drill shank, gauge plate, and a ring measured on the inside jaws.
- Pick a part. It seats against the fixed jaw and the sliding jaw swings open, as a real measurement starts.
- Close the jaws (drag, ←, or Close onto part). They stop dead on the part — they cannot pass through it.
- Read the beam, then the dial.
Orientation matters. The same cylinder appears twice: standing, the jaws close on its diameter; lying down, they span its length. The hex nut is measured across flats, never corners.

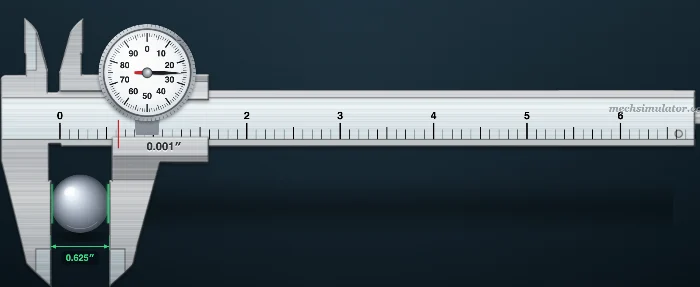

Sizes are realistic, not tidy. A 5/8″ ball is 15.88 mm; on a 0.02 mm dial it resolves to 15.88 mm, and on the 0.001″ dial it reads a clean 0.625″. Where the part falls between divisions the object bar says so — that gap is the instrument’s resolution limit, not a mistake.
4 How the Dial Works
Explore mode is a reference library in five parts:
- Parts & Components: a labelled diagram with twelve callouts — fixed jaw, dial head, outside and inside jaws, beam, metric and inch graduations, dial face, index line, depth rod, thumb roller and locking screw.
- Caliper Types: dial, vernier and digital compared on what actually decides which one you pick up.
- Graduations: the three instruments worked through, plus the one-revolution trap.
- Zero Error: positive, negative, and how zeroing the bezel differs from carrying a correction in your head.
- Reading Method: the three steps and the five errors that actually happen.
5 Practice and Quiz
Practice mode offers two drills. Play / Pause freezes the caliper at a random opening for you to read; Measure an object loads a part you must close onto first — Check stays greyed out until the jaws are genuinely in contact, so you cannot guess past the measuring step.
Quiz mode is a five-question dial caliper reading test, at least two questions of which are real parts rather than preset openings. A results panel scores you with a row-by-row breakdown. Quizzes work on all three instruments, with or without zero error.
Answers are typed as decimals: three places on the inch dial (1.364), two on the metric dials (25.34). Anything within half a division is accepted.
6 Understanding the Reading
A dial caliper reading has three parts:
- BEAM: the last beam graduation the index line has passed. Each one is a whole needle revolution.
- DIAL: the division the needle points to, 0–99.
- GRAD: what one dial division is worth — 0.001″, 0.02 mm or 0.01 mm.
Inch example: BEAM = 1.300″, DIAL = 64, GRAD = 0.001″ → 1.300 + 0.064 = 1.364″.
Metric example: BEAM = 24 mm, DIAL = 67, GRAD = 0.02 mm → 24.00 + 1.34 = 25.34 mm.
Then subtract any zero error. Note the sign convention: a caliper that reads high with the jaws shut has a positive zero error, and you subtract it.
7 Accuracy and Standards
Graduation is not accuracy. A dial caliper graduated in 0.001″ is permitted an error several times that under ISO 13385-1:2019 (on which JIS B 7507:2022 is based):
- Inch: ±0.001″ over 0–4″, ±0.0015″ over 4–8″
- Metric: ±0.03 mm for a 150 mm instrument
Those limits assume a calibrated instrument, zero checked at the time of use, at the 20 °C metrology reference temperature. A caliper warmed in your hand for a minute has already moved.
How to Read a Dial Caliper — Online Practice Simulator
A dial caliper is read by adding two numbers: the beam, which counts whole needle revolutions, and the dial, which gives the fraction of a revolution. Each beam graduation is worth exactly one turn of the needle — 0.100″, 2 mm or 1 mm — so the total is a plain sum with nothing to convert.
This simulator puts three real instruments in front of you and lets you take that reading as many times as it takes. Drag the jaws, close them onto a real part, put a zero error in and correct it, then take a scored dial caliper reading test. It is free, needs no sign-up, and runs in the browser.
Dial Caliper Specifications — the Three Common Instruments
| Instrument | Dial divisions | One division | Per revolution | Beam graduated | Typical range | Accuracy (ISO 13385-1) |
|---|---|---|---|---|---|---|
| Inch (decimal) | 100 | 0.001″ | 0.100″ | every 0.100″ | 0–6″ | ±0.001″ (0–4″) |
| Metric (standard) | 100 | 0.02 mm | 2 mm | every 2 mm | 0–150 mm | ±0.03 mm |
| Metric (fine) | 100 | 0.01 mm | 1 mm | every 1 mm | 0–150 mm | ±0.03 mm |
Notice what the table says twice: the dial always has 100 divisions, and the beam is always graduated at one revolution. Those two facts are why the reading is an addition rather than a calculation.
How to Read a Dial Caliper — Step by Step
- Check zero first. Wipe the faces, close the jaws gently, and confirm the needle sits on 0. If it does not, either zero the bezel or note the error and apply it to every reading.
- Read the beam. Find the index line on the sliding head and read the last graduation it has passed — never the one ahead. Say the number out loud.
- Read the dial. Look straight down at the needle and read its division, 0–99.
- Add them. Total = beam + (divisions × graduation).
- Apply the zero error. Subtract a positive error; add a negative one.
Worked Example — Reading 1.364″ on a 0.001″ Dial Caliper
| Step | What you observe | Value |
|---|---|---|
| 1 | Last beam graduation the index line has passed | BEAM = 1.300″ |
| 2 | Division the needle points to | DIAL = 64 |
| 3 | DIAL × GRADUATION | 64 × 0.001 = 0.064″ |
| 4 | Total | 1.300 + 0.064 = 1.364″ |
Set the instrument pill to 0.001″ and drag the jaw until the readout shows 1.364 to reproduce this exactly. In the workshop this is spoken as “one three six four”, or “one and three sixty-four thou”.

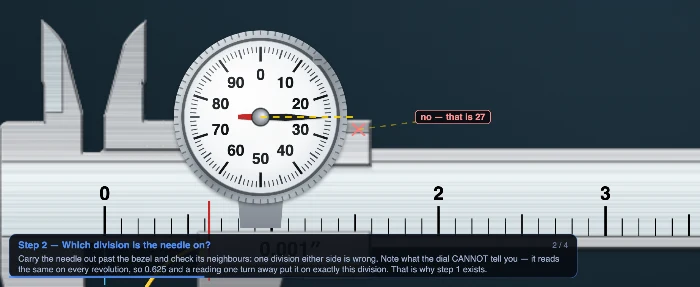

What Is the One-Revolution Error?
This is the mistake that defines the instrument, and a vernier caliper cannot make it. At 0.140″ and at 0.240″ the dial is identical — the needle sits on 40 in both cases. Only the beam separates them, and getting it wrong costs a full 0.100″ (or 1 mm, or 2 mm).
It is not a fault in the caliper and it is not carelessness with the needle: it is reading the dial first and the beam second. Read the beam first, always. If a measurement is out by exactly one revolution, this is almost certainly why.
What Is the Least Count of a Dial Caliper?
The least count is the value of one dial division — 0.001″, 0.02 mm or 0.01 mm depending on the instrument. There is no least-count formula to apply as there is on a vernier, because nothing has to be derived: the number is printed on the dial face.
Least count is not accuracy. A 0.001″ dial caliper is allowed ±0.001″ of error over its first four inches under ISO 13385-1:2019, so the last digit it displays is the same size as the error it is permitted. Treat the third decimal as an indication, not a guarantee, and reach for a micrometer when it has to be right.
Dial Caliper vs Vernier Caliper vs Digital Caliper
| Dial | Vernier | Digital | |
|---|---|---|---|
| How the fraction is read | Needle over 100 divisions | Coincident line | LCD |
| Reading speed | Fast | Slow | Fastest |
| Characteristic error | One revolution out | Wrong coincident line | Flat battery |
| Zero correction | Rotate the bezel | Carry the correction | Zero-set button |
| Survives grit and coolant | Poorly — rack jams | Very well | Poorly |
| Shows movement | Yes — the needle sweeps | No | Poorly — digits flicker |
The needle is the dial caliper’s real advantage, and it is the one most comparisons miss. On comparative work — sorting parts, finding the high spot, checking a batch against a limit — a sweeping needle shows a trend that a flickering digit cannot. That is why dial calipers survive in production inspection long after digital took over the toolbox.
If you are learning the vernier scale instead, the vernier caliper simulator covers 0.02 mm, 0.05 mm, 0.1 mm, 0.001″ and 1/128″ instruments with the coincidence method.
How Do You Zero a Dial Caliper?
- Wipe both measuring faces — a fingerprint is worth several divisions.
- Close the jaws gently, using the thumb roller rather than squeezing the frame.
- Slacken the small bezel clamp screw on the rim.
- Rotate the bezel until the dial zero sits exactly under the needle.
- Re-tighten the clamp and re-check.
Only ever with the jaws closed. Zeroing the bezel on an open caliper bakes that opening in as a permanent error on every measurement afterwards — and unlike a vernier zero error, nothing on the instrument shows that it was done. Turn Zero Error on in the simulator and use Zero the bezel to see the correct sequence.
Common Dial Caliper Mistakes
- One revolution out — the signature error. Read the beam first.
- Reading the beam as millimetres on a 2 mm/rev instrument — halves every measurement. Check what one graduation is worth before you add.
- Parallax — viewing the needle from an angle. Look straight down its axis.
- Over-tightening — a caliper is not a clamp. Stop at first contact.
- Rocking the caliper — on an outside diameter keep the smallest reading; in a bore keep the largest. A tilted jaw spans a diagonal and reads large; a chord across a bore is shorter than the diameter.
- Skipping the zero check — a knocked bezel puts the same error into every part in the batch.
Who Uses This Simulator?
Apprentices and machining students meeting a dial caliper before they are trusted with a real one; instructors who need a projectable instrument that cannot be dropped; anyone preparing for a practical measurement assessment where readings are marked to the thousandth. It is also a fair way to settle whether a reading that looks 0.100″ wrong is a bad caliper or a dropped revolution — set the same case up here and see.
Standards and References
- ISO 13385-1:2019 — Geometrical product specifications (GPS): dimensional measuring equipment, Part 1: design and metrological characteristics of callipers.
- JIS B 7507:2022 — Vernier, dial and digital callipers; revised from ISO 13385-1:2019, and the source of the accuracy classes most manufacturers quote.
- DIN 862 — Callipers: measuring uncertainty and permissible errors.
- Instrument geometry follows the Mitutoyo 505 series: 100-division dial, 0.100″ / 2 mm / 1 mm per revolution.
