Online Teaching Challenges in Mechanical Engineering — and How Virtual Labs Solve Each One

There is a particular kind of frustration that every mechanical engineering instructor teaching online eventually experiences. You have spent fifteen minutes explaining the difference between strong-axis and weak-axis bending of an I-beam. You have drawn the cross-section on screen, labelled every dimension, shown the formula. And then a student asks: “But why is Ix so much bigger than Iy?” In a physical lab you hand them the section and they immediately understand — the material is concentrated far from the x-axis, close to the y-axis. Online, you have no section to hand over. That is the core challenge of online teaching in mechanical engineering, and it keeps repeating at every topic.

Why Mechanical Engineering is Particularly Hard to Teach Online

Mechanical engineering is fundamentally a tactile discipline. Students are supposed to feel the deflection of a beam, see a truss deform under load, watch a four-bar mechanism trace its coupler curve. These experiences build intuition that no amount of typed explanation fully replaces. When that sensory layer disappears in online delivery, two things happen. The weaker students stop believing in the numbers — the formulas become symbols without meaning. The stronger students do well anyway, because they can hold the geometry in their heads. The gap between them widens.

The tools available to bridge that gap have improved dramatically. But most instructors are not aware of all of them, and fewer still have a delivery routine that uses them consistently.

Five Challenges Every Mechanical Engineering Instructor Recognises

Here is a honest list — drawn from real classroom experience, not a survey report.

Challenge 1 — No physical specimens. Students cannot hold a hollow shaft next to a solid one and compare the weight. They cannot flex a thin beam and a thick one with the same hand. Without these reference experiences, abstract comparisons stay abstract.

Challenge 2 — Static 2D graphics for 3D problems. A cross-section drawn on a slide never changes. Students can see that the I-beam formula gives a bigger Ix than a rectangle of the same area, but they cannot explore what happens when the flange gets wider or the web gets thicker. The formula exists; the insight does not arrive.

Challenge 3 — Demos vanish after the session. A live instructor calculation done over video call cannot be replayed. Students who were confused at step 3 cannot rewatch step 4. This is fine for routine problems, but for topics like the parallel axis theorem — where the “aha” moment often arrives ten minutes after the session ends — it is a real loss.

Challenge 4 — No feedback on whether the numbers are right. In a lab, students measure and then check. Online, they calculate and then wonder. An interactive simulator that produces the correct answer lets them verify their hand calculation immediately.

Challenge 5 — Assessment without practicals. It is genuinely hard to test whether a student understands which axis a beam bends about, or why a hollow section is more efficient than a solid one, using a written exam alone. Practical observation used to carry that weight. Without it, assessment is reduced to formula recall.

How the Moment of Inertia Simulator Addresses All Five

The Moment of Inertia Simulator is a direct answer to each challenge above. It renders 8 standard cross-sections — rectangle, circle, hollow circle, hollow rectangle, I-beam, T-section, channel, and angle — with live geometry that students drag to resize. Every property updates instantly: area A, centroid coordinates, second moment of area Ix and Iy, section moduli Sx and Sy, radii of gyration rx and ry, and polar moment J.

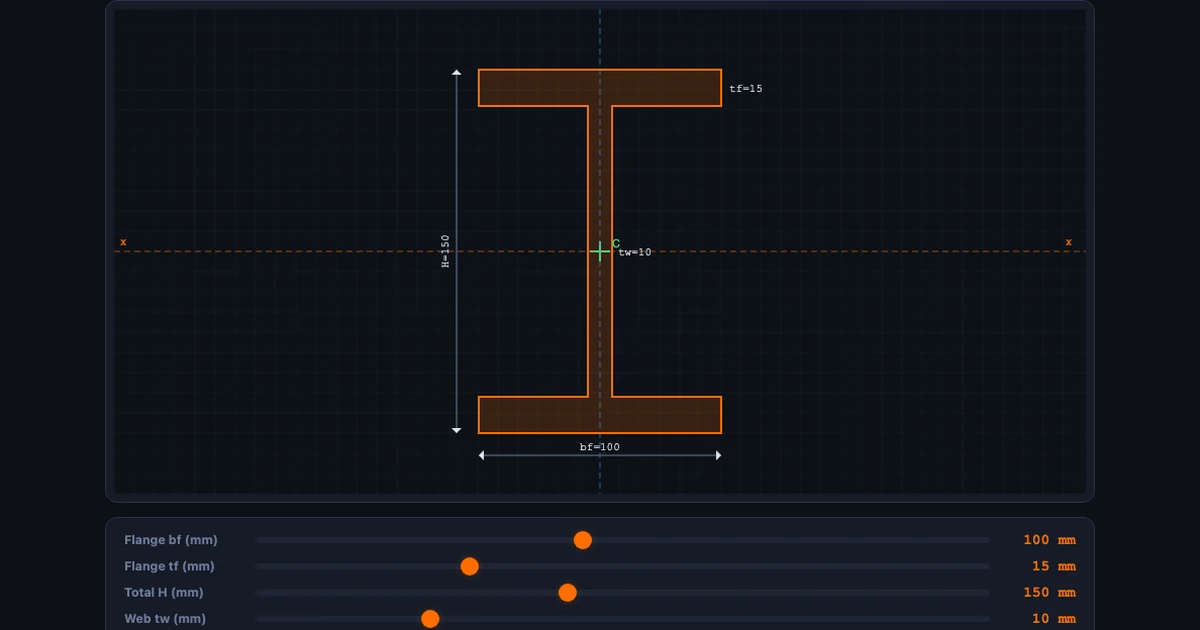

For the I-beam at default values (flange bf = 100 mm, flange thickness tf = 15 mm, total height H = 150 mm, web thickness tw = 10 mm), the key results are:

\[A = 4{,}200 \text{ mm}^2 \qquad I_x = 15.165 \times 10^6 \text{ mm}^4 \qquad I_y = 2.51 \times 10^6 \text{ mm}^4\]

That 6:1 ratio between Ix and Iy is visible in the canvas rendering — and when a student drags the flange width from 100 mm to 60 mm they can watch Iy collapse while Ix barely changes. That is not a calculation. That is intuition being built.

For the rectangle and parallel axis theorem, students can verify the standard formula directly:

\[I_x = \dfrac{b \, h^3}{12}\]

And the parallel axis theorem:

\[I = \bar{I} + A \cdot d^2\]

where \(\bar{I}\) is the centroidal second moment of area and \(d\) is the distance from the centroid to the new axis. The I-beam simulator builds this in automatically for each flange element, showing students what the theorem is actually doing.

A Classroom Scenario That Actually Works

Here is a 20-minute online session structure that has worked repeatedly. The topic is second moment of area for structural profiles.

Warm-up (4 min). Open the simulator. Both you and the students have it running simultaneously. Ask everyone to select “Rectangle” and set width b = 50 mm, height h = 100 mm. Ask them to read off Ix and Iy before you show anything. Students immediately notice Ix is four times larger than Iy. They have just discovered that orientation matters — no explanation needed yet.

Concept build (8 min). Explain the formula \(I_x = bh^3/12\). Show the cube exponent is on h (the dimension perpendicular to the bending axis). Switch the rectangle to b = 100, h = 50 and watch Ix and Iy swap. Ask: “If this were a floor joist, which orientation would you choose?” They already know. You just confirmed it with maths.

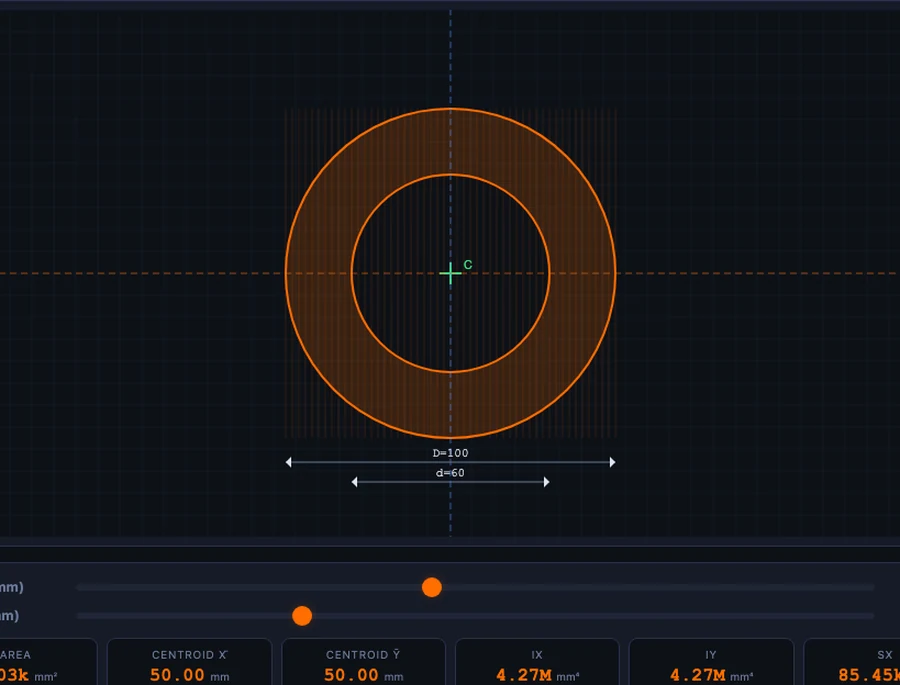

Comparison task (8 min). Ask students to find the cross-section with the largest Ix for an area A ≤ 5,000 mm². They try I-beam, T-section, and hollow circle. The I-beam wins every time, and they can see exactly why: material is concentrated far from the centroidal x-axis, maximising the \(Ad^2\) term in the parallel axis theorem.

Students who do this task independently — not watching a screen-share — actually make the discovery themselves. It sticks in a way that a worked example does not.

For a complementary angle on how distributed loads affect the beam itself once you know Ix, the Shear Force and Bending Moment Diagram guide shows the full chain from load to bending moment to stress.

Building Your Virtual Lab Routine for Mechanical Engineering

Start with geometry, not formulas. Every mechanical engineering topic has a geometric component that a virtual simulator can make visible before any formula is introduced. Load the simulator first, let students explore, then introduce the equation that formalises what they observed.

Use comparison tasks, not demonstrations. Watching a screen-share is passive. Giving students two configurations to compare — “which has a larger section modulus?” — is active. Even if both you and the student are looking at the same simulator, the student who types in the numbers builds memory that the watcher does not.

Assign screenshot evidence assessments. Ask students to configure a specific I-beam, screenshot the result showing all readouts, and annotate their hand calculation alongside it. If their hand calculation says Ix = 15.0 × 10&sup6; mm&sup4; but the simulator shows 15.165 × 10&sup6; mm&sup4;, they have a rounding error to find and fix. That feedback loop used to require a physical lab. It no longer does.

Cover mechanisms and dynamics too. Cross-section theory is one slice. The Spring-Mass-Damper Vibrations Simulator and the Four-Bar Linkage Simulator cover dynamics and kinematics with the same “change a parameter, watch what moves” approach.
